QA6ASLS030NP41S06 3/8” Square Drive Ingersoll Rand 283 in-lbs QA6 Series Adjustable Shut-Off Clutch Inline Air Nutrunner. Actuation/Throttle Type/Switch Type: Lever Air Consumption (cfm): 36 cfm Air Inlet: 3/8” NPT Air Pressure (PSI): 90 PSI

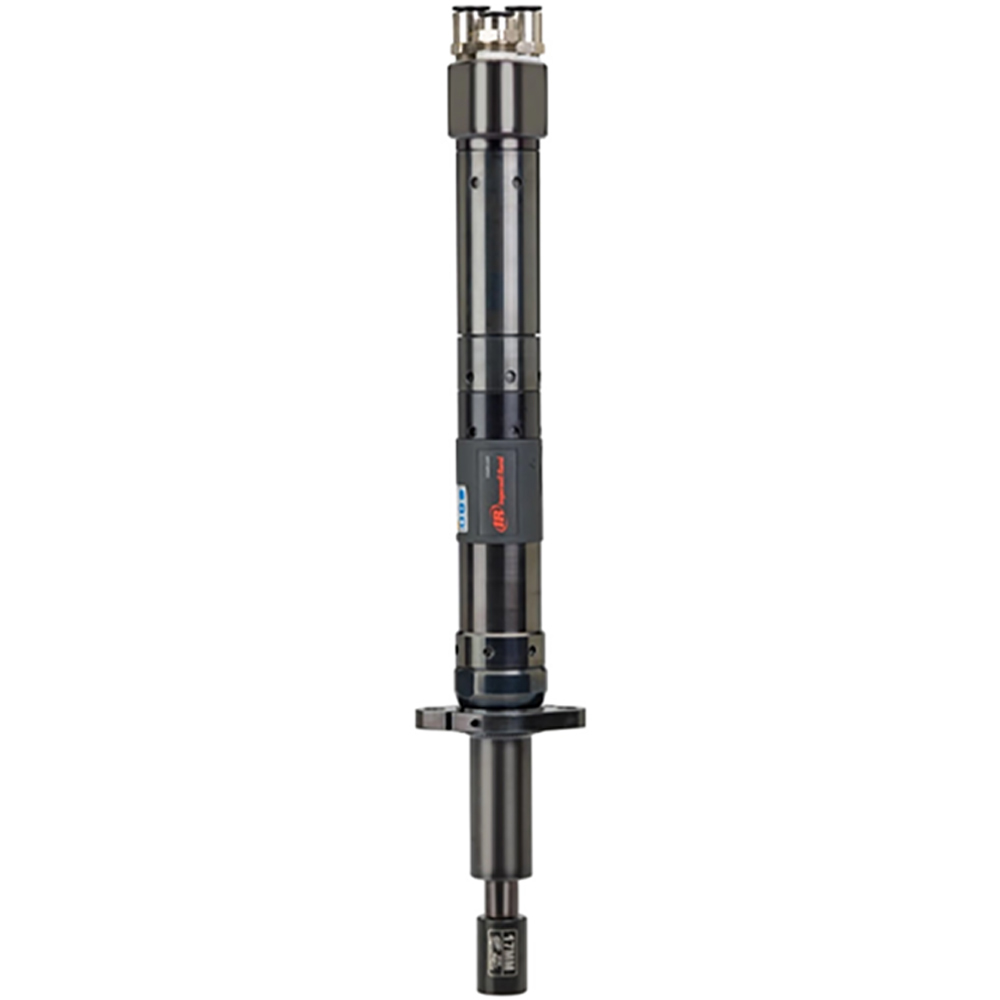

Product image may not represent exact model.
The QA6ASLS030NP41S06 3/8” Square Drive Ingersoll Rand 283 in-lbs QA6 Series Adjustable Shut-Off Clutch Inline Air Nutrunner is equipped with an adjustable shutoff clutch that makes it great for fastening applications that involve plastics, composites and metals, requiring precise torque control.
Offers powerful performance up to 283 in-lbs of torque and speeds up to 605RPM. The accurate adjustable shut-off clutch provides repeatability that improves joint quality and limits scatter and torque reaction. Spend your time working, not waiting for repair, as the QA series has been tested for 1 million cycles without failure. The lube-free motor makes it easy to manage the upkeep of the nutrunner with just a spanner wrench. Ergonomic grip for operator comfort.
Recommended for applications where precise torque control is required. Great for fastening applications that involve plastics, composites and metals, requiring precise torque control.
The QA6ASLS030NP41S06 3/8” Square Drive Ingersoll Rand 283 in-lbs QA6 Series Adjustable Shut-Off Clutch Inline Air Nutrunner is backed by a 1-year warranty for peace of mind.
| Part Number | QA6ASLS030NP41S06 |
|---|---|
| Actuation/Throttle/Switch | Lever |
| Air Consumption (cfm) | 36 cfm |
| Air Inlet | 3/8'' NPT |
| Air Pressure (PSI) | 90 PSI |
| Clutch Type | Adjustable Shut-off |
| Configuration/Handle Type | Straight |
| Drive Size | 3/8'' |
| Drive Type | Square |
| Fastener Size | M8 |
| Head Side to Center | 0.8'' |
| Max Free Speed (rpm) | 605RPM |
| Max Power | 0.75hp |
| Max Pressure | 6.2 bar |
| Max torque | 24 ft-lbs / 283 in-lbs / 32.0 Nm |
| Min. Hose Size | 1/2'' |
| Mounting Type | Standard Gearcase |
| Power Source | Air Powered |
| Product Length | 18.8'' / 478mm |
| Product Weight | 5.07lbs / 2.3kg |
| Rec. Forward Torque Range | 11-22 ft-lbs / 133-266 in-lbs / 15 – 30 Nm |
| Sound Pressure/Power Db(A) | 82.5 / 93.5 |
| Vibration Level (m/s2) | < 2.5m/s2 |
| Warranty | 1-year |
