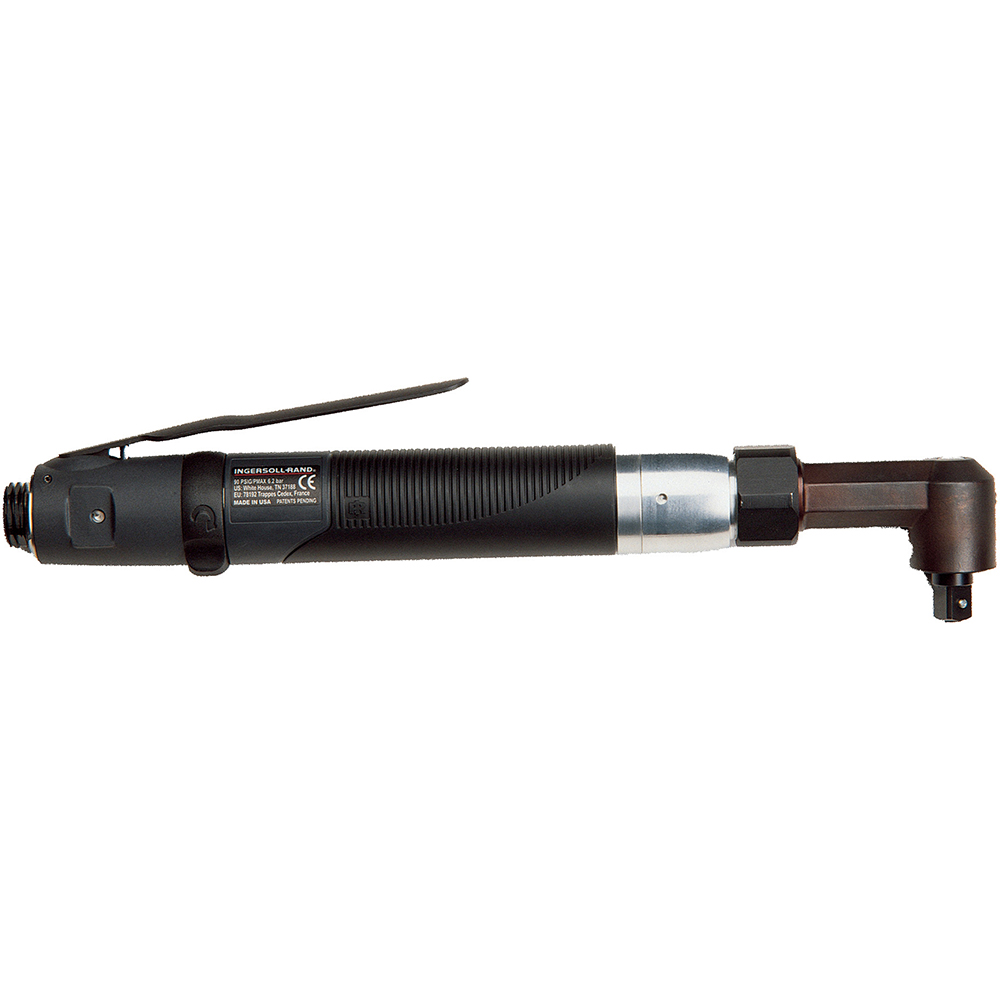

QA1L05S4SD 1/4” Square Drive Ingersoll Rand 36 in-lbs Q2 Series Adjustable Shut-Off Clutch Right Angle Air Nutrunner w/ Memory Chip . Actuation/Throttle Type/Switch Type: Lever Air Inlet: 1/4” NPT Air Pressure (PSI): 90 PSI
The QA1L05S4SD 1/4” Square Drive Ingersoll Rand 36 in-lbs Q2 Series Adjustable Shut-Off Clutch Right Angle Air Nutrunner w/ Memory Chip is engineered for dependable performance in demanding applications.
An adjustable precision shut-off clutch is designed for critical fastening applications involving plastics, composites, or metals that require precise torque control. Automatic shut-off reduces air consumption and torque reaction.
The QA1L05S4SD 1/4” Square Drive Ingersoll Rand 36 in-lbs Q2 Series Adjustable Shut-Off Clutch Right Angle Air Nutrunner w/ Memory Chip is backed by a 1-year warranty for peace of mind.
| Part Number | QA1L05S4SD |
|---|---|
| Actuation/Throttle/Switch | Lever |
| Air Inlet | 1/4'' NPT |
| Air Pressure (PSI) | 90 PSI |
| Clutch Type | Adjustable Shut-off |
| Configuration/Handle Type | Right Angle |
| Drive Size | 1/4'' |
| Drive Type | Square |
| Max Free Speed (rpm) | 500RPM |
| Min. Hose Size | 1/4'' |
| Power Source | Air Powered |
| Rec. Forward Torque Range | 0.3-3.0 ft-lbs / 3.5-36 in-lbs / 0.4-4.1 Nm |
| Reversible | Reversible |
| Sound Pressure/Power Db(A) | 77.3 |
| Torque Range Medium Spring | 0.8-3.0 ft-lbs / 9.3-36 in-lbs / 1.05-4.07 Nm |
| Torque Range Light Spring | 0.3-1.0 ft-lbs / 3.5-12 in-lbs / 0.4-1.3 Nm |
| Vibration Level (m/s2) | < 2.5m/s2 |
| Warranty | 1-year |
The QA1L05S4SD 1/4” Square Drive Ingersoll Rand 36 in-lbs Q2 Series Adjustable Shut-Off Clutch Right Angle Air Nutrunner w/ Memory Chip is engineered for dependable performance in demanding applications.
An adjustable precision shut-off clutch is designed for critical fastening applications involving plastics, composites, or metals that require precise torque control. Automatic shut-off reduces air consumption and torque reaction.
The QA1L05S4SD 1/4” Square Drive Ingersoll Rand 36 in-lbs Q2 Series Adjustable Shut-Off Clutch Right Angle Air Nutrunner w/ Memory Chip is backed by a 1-year warranty for peace of mind.
| Part Number | QA1L05S4SD |
|---|---|
| Actuation/Throttle/Switch | Lever |
| Air Inlet | 1/4'' NPT |
| Air Pressure (PSI) | 90 PSI |
| Clutch Type | Adjustable Shut-off |
| Configuration/Handle Type | Right Angle |
| Drive Size | 1/4'' |
| Drive Type | Square |
| Max Free Speed (rpm) | 500RPM |
| Min. Hose Size | 1/4'' |
| Power Source | Air Powered |
| Rec. Forward Torque Range | 0.3-3.0 ft-lbs / 3.5-36 in-lbs / 0.4-4.1 Nm |
| Reversible | Reversible |
| Sound Pressure/Power Db(A) | 77.3 |
| Torque Range Medium Spring | 0.8-3.0 ft-lbs / 9.3-36 in-lbs / 1.05-4.07 Nm |
| Torque Range Light Spring | 0.3-1.0 ft-lbs / 3.5-12 in-lbs / 0.4-1.3 Nm |
| Vibration Level (m/s2) | < 2.5m/s2 |
| Warranty | 1-year |
