8255-101-3 3” Stroke Ingersoll Rand Par-A-Matic Valve-In-Head Self-Feed Air Drill. Product Type: Self-Feed Drill Free Speed: 10,000RPM Gear Reduction: Double Stroke Length: 3” / 76mm

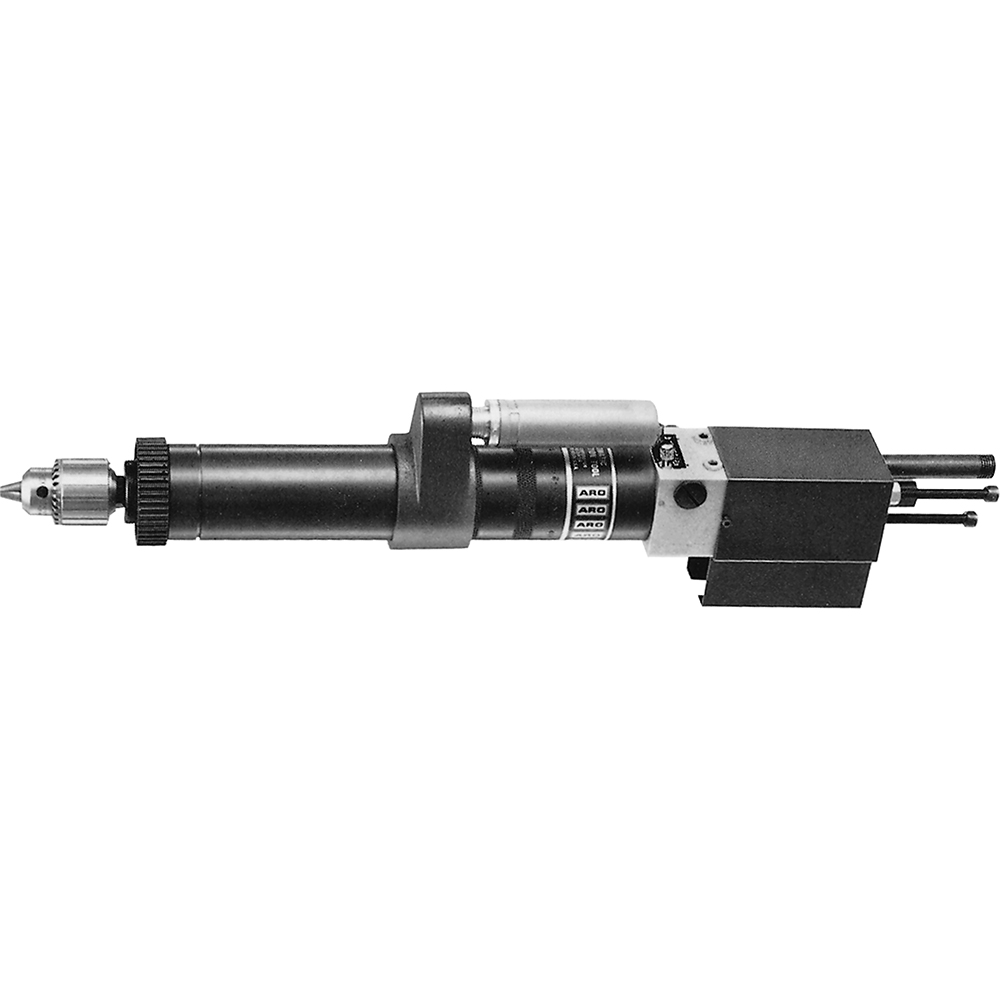

Product image may not represent exact model.
>
The 8255-101-3 3” Stroke Ingersoll Rand Par-A-Matic Valve-In-Head Self-Feed Air Drill is a compact, high-precision production drill engineered to automate a wide range of secondary machining applications with speed, consistency, and economy. Designed for versatility, the 8255-101-3 3” Stroke Ingersoll Rand Par-A-Matic Valve-In-Head Self-Feed Air Drill leverages compressed air for both spindle rotation and feed/control functions, allowing manufacturers to achieve dependable output with minimal system complexity. Its rotary-vane air motor delivers an exceptional power-to-size ratio, helping reduce overall tool weight and footprint for flexible integration into automated machining setups.
As part of the proven ARO Par-A-Matic series, the 8255-101-3 3” Stroke Ingersoll Rand Par-A-Matic Valve-In-Head Self-Feed Air Drill is built for straightforward installation and quick deployment, requiring only simple pneumatic circuitry. It can operate as a stand-alone automatic production tool or be paired with other pneumatic or electric components within larger manufacturing systems. The unit?s built-in four-way valve enables both manual and remote operation, giving integrators and operators the control flexibility needed in dynamic production environments.
The 8255-101-3 3” Stroke Ingersoll Rand Par-A-Matic Valve-In-Head Self-Feed Air Drill incorporates a double-acting air piston that provides smooth, balanced forward and retract strokes, while needle valve controls allow precise adjustment of stroke characteristics. An integrated adjustment screw offers infinite stroke-length settings up to the full rated capability, enabling fine-tuned operation across a wide range of materials and hole specifications. Ball bearing spindle support ensures long service life and consistent precision, even under continuous production loads. A muffled exhaust system further contributes to a quieter, more comfortable work environment.
Engineered for durability, simplicity, and high repeatability, the 8255-101-3 3” Stroke Ingersoll Rand Par-A-Matic Valve-In-Head Self-Feed Air Drill is an excellent choice for automated drilling operations requiring compact design, adjustable performance, and reliable long-term productivity.
| Part Number | 8255-101-3 |
|---|---|
| Product Type | Self-Feed Drill |
| Free Speed | 000rpm, 10 |
| Gear Reduction | Double |
| Stroke Length | 3'' / 76mm |
| Nom Drill Cap Stl SAE 1213 | 1/32'' / 0.8mm |
| Nom Drill Cap Alum 2024-T4 | 1/16'' / 1.6mm |
| Nom Drill Cap- Wood Med Frp | 5/32'' / 4.0mm |
| Air Inlet | 1/4'' NPT male |
| Control Ports | 1/8'' NPTF female |
| Spindle Thread | 1/2''-20 male |
| Recommended Hose Size | 5/16'' ID |
| Rec. Operating Pressure | 90 PSI / 6.2 bar |
